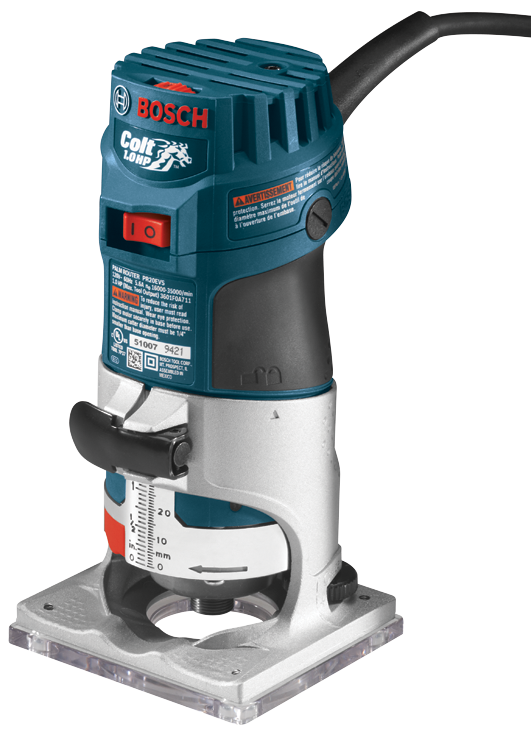

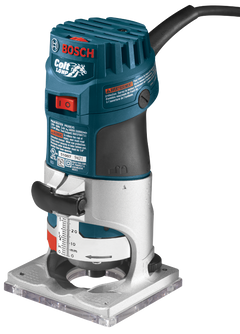

Bosch Colt PR20EVS palm router in blue on its aluminum PR001 fixed base with a clear subbase, three-quarter view
Bosch PR20EVS feature callouts: 5.6 amp 1.0 HP motor, compact design, depth adjustment system, finger support pockets, aluminum fixed base and bit-changing system

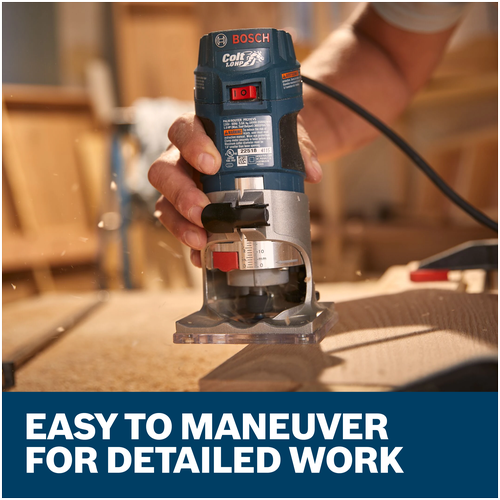

Hand guiding the Bosch Colt PR20EVS palm router along a board edge for detailed work

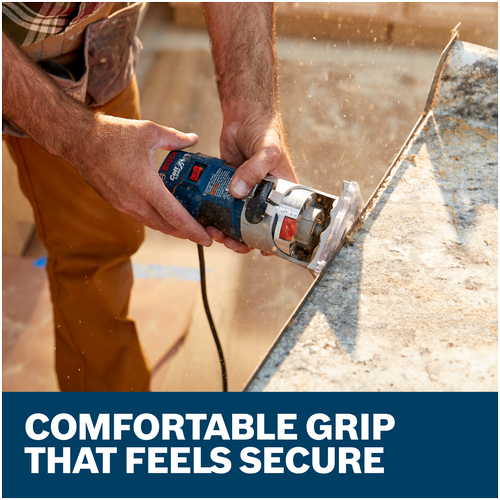

Bosch Colt PR20EVS held sideways in a palm grip while routing the edge of a countertop

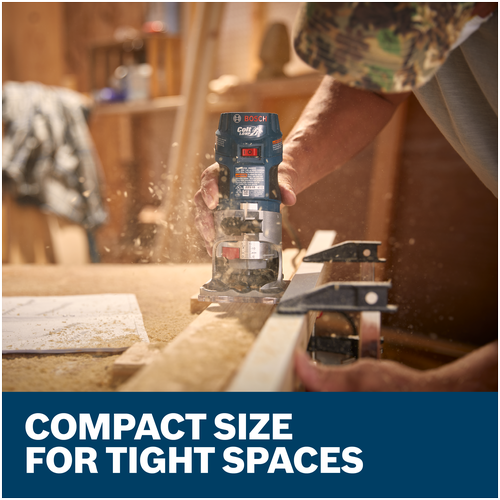

Bosch Colt PR20EVS routing a narrow board in a workshop, showing its compact size

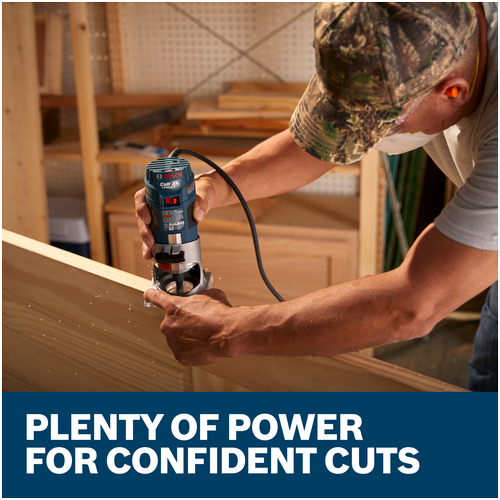

Woodworker routing the edge of a large panel with the Bosch Colt PR20EVS

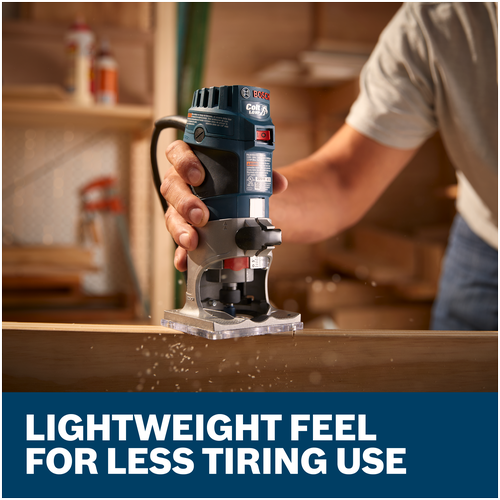

Bosch Colt PR20EVS palm router trimming a board on a workbench

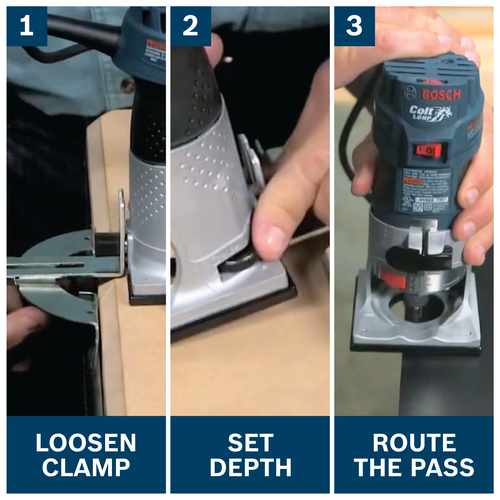

Three steps on the Bosch PR20EVS: loosen the clamp, set the depth on the fixed base, route the pass

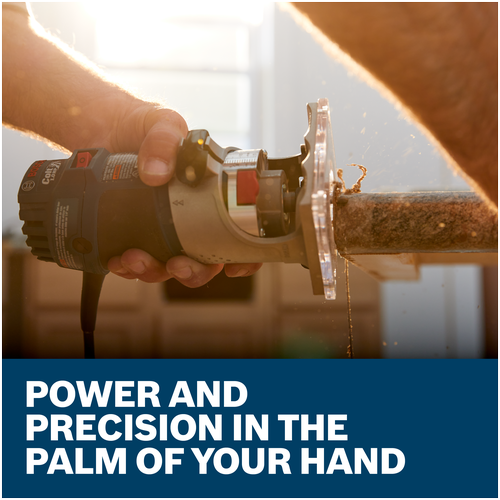

Close-up of the Bosch Colt PR20EVS held in one hand while routing a board edge

Bosch Colt PR20EVS 1 HP Electronic Variable-Speed Palm Router

Regular price$93.00
/
Shipping calculated at checkout.
Ships from Toronto the same business day
Estimated delivery: 3-8 business days
  • Low stock
  • Backordered, shipping soon
  • Brand New, Factory Sealed
  • Authenticity Guarantee
  • Free Shipping over $100 USD

One email when it restocks. Nothing else.

Colt™ Electronic Variable-Speed Palm Router

The Bosch PR20EVS Colt electronic variable-speed palm router combines power, precision and versatility in a small-sized tool. It has a 1.0 HP, 5.6 Amp motor that spins at a variable speed of 16,000 to 35,000 RPM. The variable speed dial is conveniently mounted on top of the tool body. The router features Constant Response circuitry, which maintains a consistent speed by detecting heavy loads and increasing power to maintain the selected RPM. It features soft-start circuitry, which reduces startup torque. Additionally, depth adjustment is simple; just align and lower the motor and then lock the router in position with the clamping level. Micro-fine adjustments are equally effortless, thanks to the wheel on the back of the router's base. It accepts standard 1/4 In. bits for flexibility, with an impressive max cutter diameter of 1-5/16 In. The motor housing has a palm-shaped, rubber over-molded grip that allows for comfortable operation. And the included rugged aluminum fixed base is durable, solid and precise.

Includes:

  • (1) PR20EVS Palm Router
  • (1) PR001 Fixed Base
  • (1) 1/4 In. Self-Releasing Collet Chuck
  • (1) Shaft Wrench
  • (1) Collet Wrench

The Bosch PR20EVS is the Colt palm router with the PR001 aluminum fixed base. Bosch part number 3601F0A710, UPC 000346471045. It is the North American corded model. It runs on 120 V AC and draws 5.6 A. The 1.0 HP motor turns at 16,000 to 35,000 RPM, set on the variable speed dial on top. Soft-start and Constant Response circuitry are built in. The collet takes 1/4 in. shank bits. The fixed base takes bits up to 1-5/16 in. across. The base opening is 1-9/16 in. and the depth range is 1-3/16 in. The subbase measures 3-1/2 x 3-3/4 in. Bits change with two wrenches, or with the spindle lock and one wrench. A quick-clamp system moves the motor from base to base. The tool weighs 3.3 lb and measures 7.5 x 3.5 x 3.75 in. No case or dust collection attachment is included. It fits Bosch PR-series accessories, sold separately: the PR011 plunge base, PR102 edge guide, PR003 roller guide, PR004 offset base, PR005 tilt base, PR006 underscribe attachment and PR007 side handle subbase with dust collection. Ships brand new and factory sealed from Toronto, Canada.

UPC: 000346471045

The short version: we ship from Toronto, and most orders leave the same business day. Standard and Express shipping are tracked. Canada: $7 CAD, free on orders of $100 CAD or more. United States: $7 USD, free on orders of $100 USD or more, with duties collected at checkout, so there is nothing to pay on delivery. UK, much of Europe, Australia, New Zealand, Singapore, Japan, Hong Kong, South Korea, Taiwan and the UAE: direct by Canada Post, priced by the weight of your parcel and shown at checkout before you pay. Import charges, if any, are paid on delivery, except in the UK (none up to £135), Australia and New Zealand (none up to $1,000) and Singapore (none up to S$400). For European orders, your cart shows an estimate. Most other countries check out with duties and taxes included and ship by DHL Express or FedEx. Canada Post has paused some European routes, including Germany and France. Some Japanese products ship directly from Japan.

Read the full shipping policy →

Questions? Email info@quazacollect.com. We reply fast.

Unopened returns within 14 days. Changed your mind? An unused item still in its original factory seal can be returned within 14 days of delivery. Email info@quazacollect.com first for the return address. Return postage is at your cost, and a 15% restocking fee (minimum $20 CAD) is deducted from the refund. Opened electronics can't be returned for a change of mind.

Warranty through the manufacturer. If a device develops a fault, contact the brand's support team for a repair or replacement. We'll send you a copy of your order invoice as proof of purchase.

Damaged or wrong item? Email us within 7 days of delivery with photos, and we'll make it right.

Read the full return policy

Pairs well with

Product details

In the box

  • PR20EVS Palm Router
  • PR001 Fixed Base
  • 1/4 In. Self-Releasing Collet Chuck
  • Shaft Wrench
  • Collet Wrench

Compatibility

  • 120 V AC outlet, corded
  • 1/4 in. shank router bits
  • PR011 Plunge Base
  • PR102 Edge Guide
  • PR003 Roller Guide
  • PR004 Offset Base
  • PR005 Tilt Base
  • PR006 Underscribe Attachment
  • PR007 Side Handle Subbase
  • PR009 RA Template Guide Subbase
  • PR110 Threaded Template Subbase

Specifications

Type
Palm Router
Brand
Bosch
Series
Bosch Colt
Model number
PR20EVS
UPC
000346471045
Color
Blue, Silver
Power source
AC-powered

Quaza Intel

Bosch's Colt PR20EVS is a 1.0 HP corded palm router with electronic variable speed, sold with the PR001 aluminum fixed base. It is the North American model. It runs on 120 V AC and draws 5.6 A, and it takes 1/4 in. shank bits.

  • 1.0 HP, 5.6 A motor, 120 V AC corded
  • Variable speed dial on top, 16,000 to 35,000 RPM
  • Soft-start and Constant Response circuitry
  • 1/4 in. self-releasing collet; bits up to 1-5/16 in. across in the fixed base
  • Base opening 1-9/16 in.; depth range 1-3/16 in.; subbase 3-1/2 x 3-3/4 in.
  • Macro and micro depth adjustment, quick-clamp motor release
  • Bit changes with two wrenches, or the spindle lock and one wrench
  • Tool weight 3.3 lb; 7.5 x 3.5 x 3.75 in.
  • No battery, no case, no dust collection attachment in the box
  • In the box: PR20EVS palm router, PR001 fixed base, 1/4 in. collet chuck, shaft wrench, collet wrench
  • Fits Bosch PR-series accessories such as the PR011 plunge base and PR102 edge guide, sold separately
  • Bosch part number 3601F0A710, UPC 000346471045

A 1.0 HP, 5.6 A motor in a 3.3 lb palm-grip body, with variable speed from 16,000 to 35,000 RPM. This box has the PR001 fixed base only; the PR011 plunge base fits it and is sold separately.

  • Rounding over and chamfering edges on shelves, trim and furniture.
  • Flush-trimming laminate and edge banding with 1/4 in. shank bits.
  • A first router for a home shop, with room to add the PR011 plunge base later.

What voltage does it need?

It runs on 120 V AC, the standard North American outlet. It is the corded North American model, so it is sold to Canada and the US only.

Does it come with a plunge base?

No. This box has the PR001 fixed base. The PR011 plunge base fits it and is sold separately.

What bits does it take?

It takes 1/4 in. shank bits in its self-releasing collet. The fixed base takes bits up to 1-5/16 in. across.

Is the speed adjustable?

Yes. A dial on top of the motor sets the speed from 16,000 to 35,000 RPM. Constant Response circuitry holds the set speed under load.

Does it have a battery?

No. It is a corded tool with no battery of any kind.

What is in the box?

The PR20EVS palm router, the PR001 fixed base, a 1/4 in. self-releasing collet chuck, a shaft wrench and a collet wrench. No case or dust collection attachment is included.

Is it new, and where does it ship from?

Yes. It is brand new and factory sealed, and ships from Toronto, Canada.
